Konektor Seri Lemo B
Created with Pixso. Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin

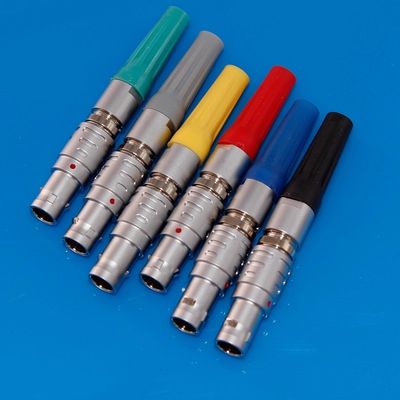

Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin

Nama merek: OEM
Nomor Model: FGG Egg
Moq: 1 pc
harga: Bisa dinegosiasikan
Waktu Pengiriman: 3-10 hari kerja
Ketentuan Pembayaran: Western Union, MoneyGram, T/T, PayPal
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
CE,ROHS
Seri:
Seri Lemo B.
Kontak:
2-16pins
Isolator:
P: PPS
Metode penghentian:
Pateri
Siklus kawin:
5000 kali
Jenis kontak:
Soket Pria & Soket Wanita
Peringkat IP:
IP50
Bahan:
Kuningan
Warna:
Perak, hitam
Kemasan rincian:
Tas PP
Menyediakan kemampuan:
50000 pcs per bulan
Menyoroti:

Lemo B Series push-pull connectors

,

self-locking circular cable assembly

,

Lemo FGG female 2-12 pin

Deskripsi Produk

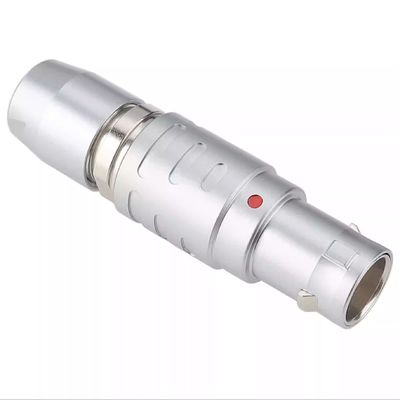

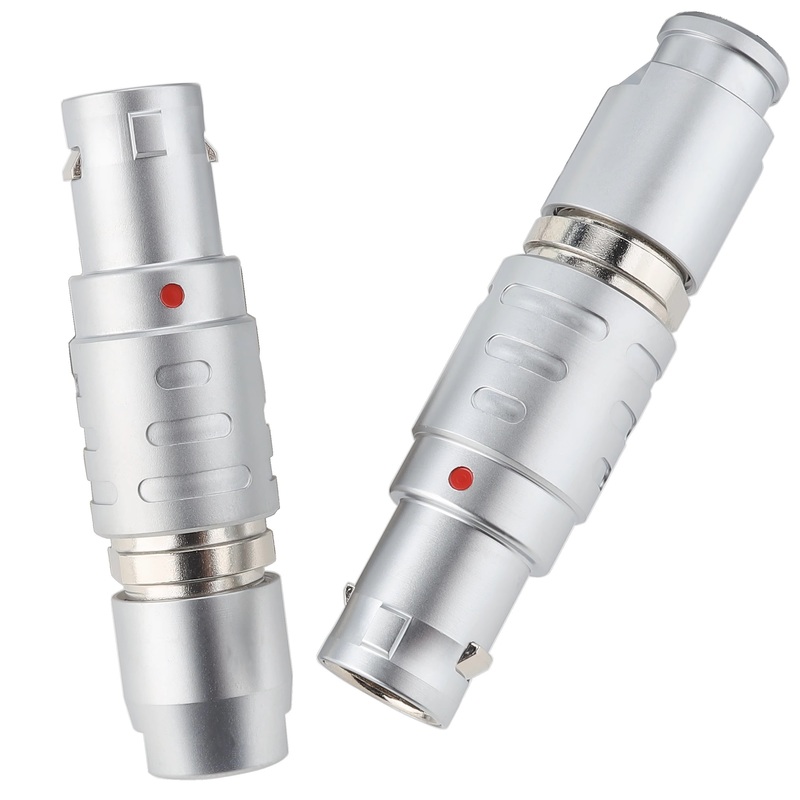

Push-pull Self-locking Circular Connectors Cable Assembly Compatible Lemo B Series Female FGG 2-12 Pin
Push-pull Self-locking Circular Connectors Compatible Lemo B Series Female FGG 2-12 Pin
Product Features
  • 100% compatible Lemo B series FGG male plug
  • 0B 1B 2B 3B 4B 2-12pins free socket for extension cable
  • Application: Audio & Video, Automotive, PCB, Communication, Aviation
  • Housing Material: Brass chrome plated
  • Mating cycles: 5000 times
  • IP Rating: IP50
Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin 0
Applications
  • Broadcast:
  • Studios and outside broadcasting
  • TV and motion picture
  • HD and SD cameras
  • Remote camera control
  • Defense & Security:
  • Communication systems
  • Surveillance equipment
  • Computers
  • Target acquisition
  • Instrumentation
  • Test & measurement:
  • Sensors
  • Data acquisition
  • Automation
  • Scientific research
  • Vacuum
Size & Drawings
Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin 1
Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin 2
DIY Cable Assembly Process
  1. Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
  2. Put the split insert carrier to the soldered insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
  3. Put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
  4. Push the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
  5. Screw the collet nut tightly
  6. Hitch the sleeve to the corresponding step of collet nut
Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin 3
Frequently Asked Questions
1. Are your company a professional manufacturer?
Re: Yes, we specialized in producing circular push pull connectors and cable assembly since 2015. We have the series connectors and cable assembly like Lemo-B, Lemo-K,Lemo-S, Lemo-F,Lemo-E,Hirose-HR10A, Lemo-P, M4, M12,M16, BNC, B680,B423 , 38999, 26482.
2. What is the MOQ?
Re: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Re: Available. Any needs, please contact us.
4. What about the delivery time?
Re: sample for 1-2 working days, mass production for 5-10 working days.
5.What is your payment terms?
Re: We accept most of the payment methods, but mainly accept TT,LC, Paypal.
6. Does your product have any warranty?
Re: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin 4
