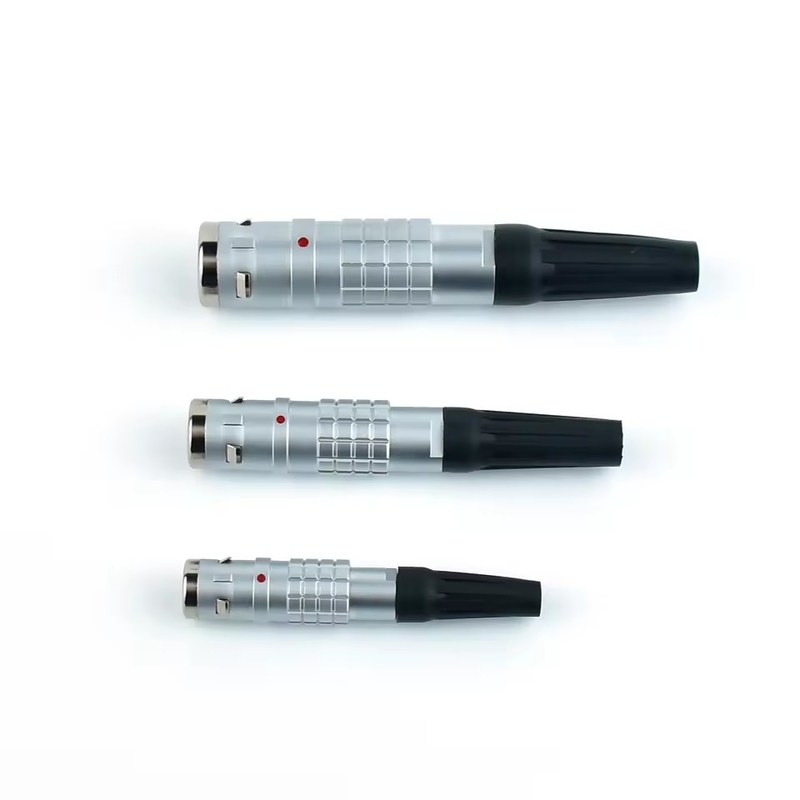

Lemo K Series Compatible Waterproof IP68 Connectors Long Endurance with Brass Housing and High Voltage Test

Lemo K Series Compatible Waterproof IP68 Connectors Long Endurance with Brass Housing and High Voltage Test

Nama merek:	Ebuddy
Nomor Model:	ED-TGG.0K.307
Moq:	1
harga:	Bisa dinegosiasikan
Waktu Pengiriman:	3-5 hari untuk sampel
Ketentuan Pembayaran:	L/C, T/T, Western Union, Paypal

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

CE,ROHS

kontak:

2 hingga 20 pin

Warna:

Perak / hitam

Bahan:

kuningan chrome

Ukuran:

Lemo 0K 1k 2k 3k 4k

Gaya:

Pasang dan Soket

Jenis kelamin:

Pria dan wanita

Peringkat Ip:

IP67, IP68

Aplikasi:

otomatisasi industri

Max. perkawinan:

5000+ Kali

Kemasan rincian:

Tas PP / Paket Khusus

Menyediakan kemampuan:

100000 pcs per bulan

Menyoroti:

Lemo K Series waterproof IP68 connectors

Lemo K Series brass housing connectors

Lemo K Series high voltage connectors

Deskripsi Produk

Lemo K Series Compatible Waterproof IP68 Connectors Long Endurance with Brass Housing and High Voltage Test

Features Of Lemo K series Connectors:

Mechanicallife: >5000 times;
Operatingtemperature: -45°C~+125°C;
Waterproof grade: lP66~lP68,
Salt spray: 5%NaCl fog in 96h;
Relative humidity: up to 95% at 60°C;
Impact: 100g,6ms;
Vibration: 10~2000Hz,15g
Air leakage: when 1.0-10'Pa pressure difference is applied atboth ends of the socket, the leakage rate is not greater than1.0Pa*cm/s;
Water pressure: The plugged connector is immersed in 2m depthof water, after 24h,there is no water seepage at the connectorinterface, and after drying at room temperature for 30min, itsinsulation resistance should comply with the water pressureconditions stipulated in military standard 3.2.8

Technical data (Lemo 0K 7pin Connectors):

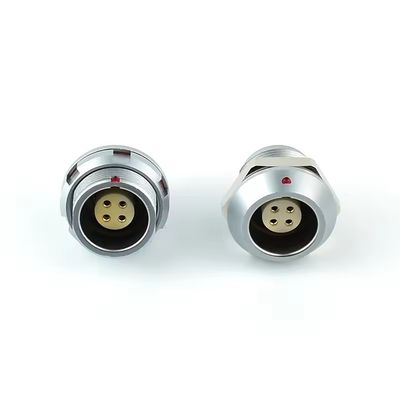

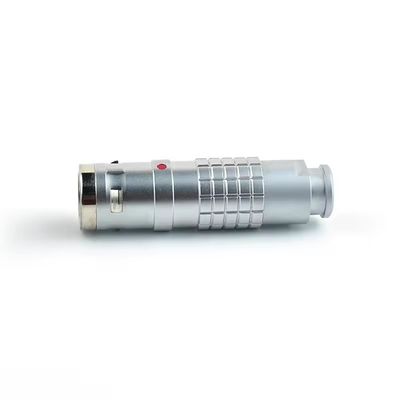

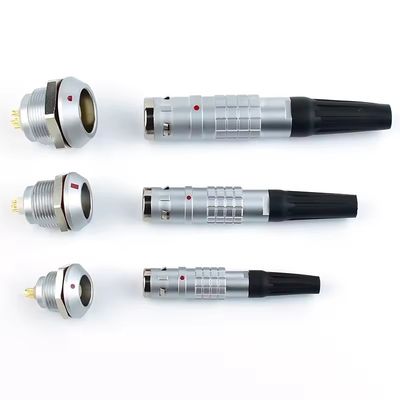

Shell Style/Model	FGG male plug and EGG female Receptacle
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
Rated Current	7A
Contact Dia	0.7 mm (0.028in)
R (max)	6.1 mOhm
Contact Type	Solder
Vtest	700-1000V
Endurance (Shell)	5000 times

Size and Drawing: (Lemo 0K 7pin Connectors):

Applications:

Industrial Control
Test and Measurement Equipment
Information Systems
Automotive and Military
Extreme Working Conditions
Harsh Environments

FAQ

Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector's or cable's working, our technical department will supply professional support to help you solve them.
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can't suit exactly what you need, we can open new mould for you.

Tag:

lemo konektor melingkar

konektor serat optik lemo

konektor lemo triax
