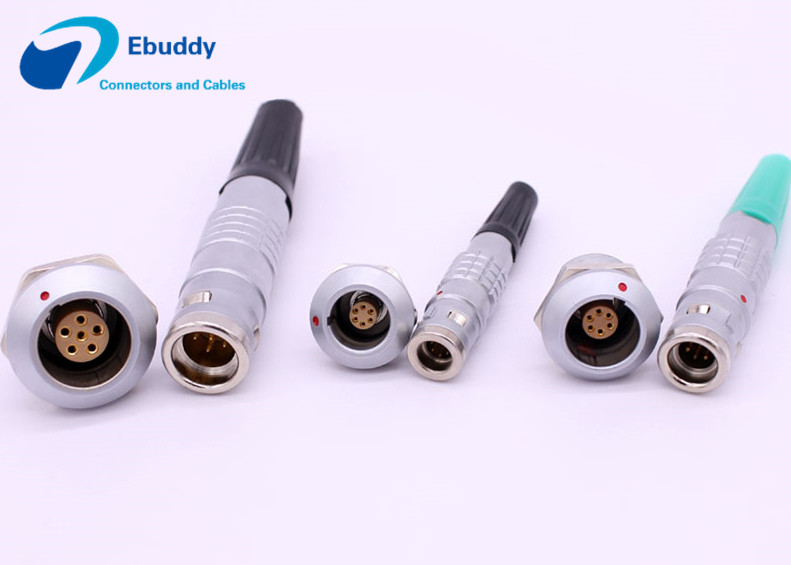

Soket dan soket Lemo K series Lemo FGG EGG 1K 2K 6pin konektor pria dan wanita
| Warna: | Perak |
| Bahan: | Paduan seng dengan nikelplate |
| Kopel: | Kopling berulir |
| Diameter kabel: | 3-7mm |
| Penghentian: | Pateri |
| Nomor PIN: | 6 pin |
| Pengobatan permukaan: | Pelapisan Nikel |
| Siklus kawin: | 5000 kali tarik dan dorong |
| Kelembaban: | Pada suhu 60°, kelembaban maks hingga 95% |
| Kisaran suhu: | -45 °- +125° |
| Getaran: | 10-20000Hz, 15g |
| Kejutan mekanik: | 100g.6ms |
| Korosi asap: | > 48jam |
| Kelas perlindungan: | IP65-68 |
| No. Collet | OD kabel | |||
| 0 rb | Tipe | coding | Maks | Min |
| C | 30 | 3.0 | 2.6 | |
| C | 40 | 4.0 | 3.6 | |
| C | 45 | 4.5 | 4.1 | |
| C | 50 | 5.0 | 4.6 | |
| No. Collet | OD kabel | |||
| 1 rb | Tipe | coding | Maks | Min |
| C | 45 | 4.5 | 4.1 | |
| C | 50 | 5.0 | 4.6 | |
| C | 55 | 5.5 | 5.0 | |
| C | 60 | 6.0 | 5.6 | |
| K | 70 | 7.0 | 6.6 | |
